Digital Radiant

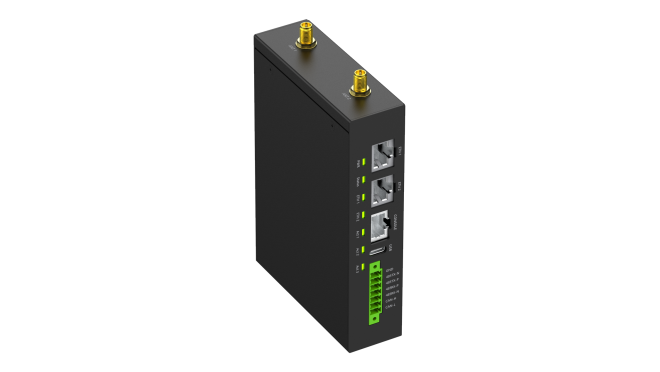

BX-3100H-G
The Bus Gateway BW-3110H-G5 is to be a protocol converter. It breaks down the communication barriers by seamlessly converting one protocol to another. For example, it can translate common industrial protocols like Modbus RTU or Modbus TCP into others .
Besides , BW-3110H-G5 series is a range of specialized industrial wireless clients engineered to provide a dedicated and seamless connection for a single moving device. They are ideal for ensuring stable connections to AGVs/AMRs, robotic arms, and other mobile machinery in dynamic production environments and it support IEEE802.11ah Wi-Fi HaLow which works at 900MHz RF band with less interference and long distance transmission up to 1KM.
- Wide temperature operation: -40~+70℃
- Support Wi-Fi 5 2.4GHz/5GHz 1 x 1
- IEEE 802.11ah Wi-Fi HaLow standards compliant
- 2 x 10/100/1000M RJ45
- PTP Support
- 1x Console PORT
- USB2.0 Host Type-C Receptacle
- GNSS support
- RS485 to Modbus TCP gateway
- CAN Bus support
- Localization support
- Network Management System (NMS) support
- Zero-Touch provisioning
- Mesh networking support
- Support for Sub-1 GHz frequency bands
- Long-range communication up to 1 km
- SMA external antenna interface
- Status indicators for power and wireless connectivity
- Wi-Fi security compliant with WPA3
- Built-in DHCP server
- Restricted Access Window (RAW) support
- Automatic and manual MCS rate selection
- Compact form factor: (L) 90 × (W) 30 × (H) 130 mm
