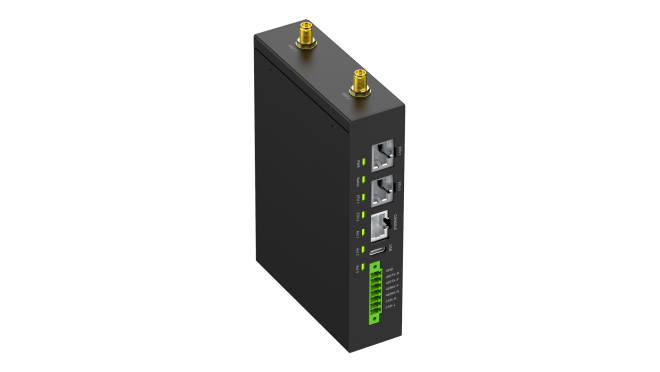

BX-3100H-4G
Preliminary
- The BX-3100H-4G is an industrial-grade gateway that integrates IEEE 802.11ah Wi-Fi HaLow and 4G LTE technologies. Operating in the sub-1GHz band, it delivers exceptional signal penetration and long-range connectivity up to 1 km, making it less susceptible to interference.
- Connectivity: 4G LTE Cat.4 worldwide bands, Wi-Fi HaLow and GNSS positioning.
- Industrial Interfaces: 2x Gigabit LAN ports, 1x Type-C USB, and a 7-pin terminal block supporting software-configurable RS232/RS422/RS485 and CAN BUS 2.0.
- Rugged Design: Supports DIN-rail mounting and a wide operating temperature range from -30 ~ 65°C for harsh environments.
- Advanced Software: Features Modbus TCP gateway translation, built-in Node-RED for IoT development, and secure VPN routing (IPsec/OpenVPN).
- Support 4G LTE / GNSS (Optional)
- IEEE 802.11ah Wi-Fi HaLow standards compliant
- 2 x 10/100/1000M RJ45
- 1x Console PORT
- USB2.0 Host Type-C Receptacle
- RS485 to Modbus TCP gateway
- CAN BUS Support
- Locationaling Support
- PTP Support
- NMS Support
- VPN Support
- Zero Touch
- WiFi Halow MESH Support
- Long range up to 1 kilometer
- Wide temperature operation: -30~+65℃
- Dimension : (L)100x(W)30x(H)130mm
