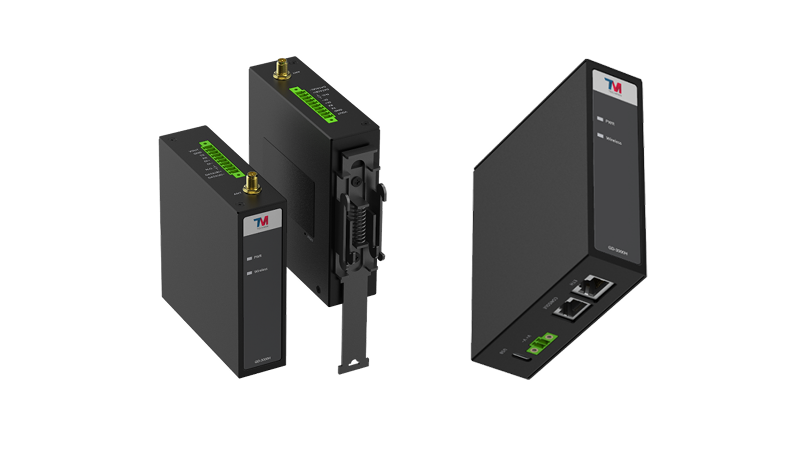

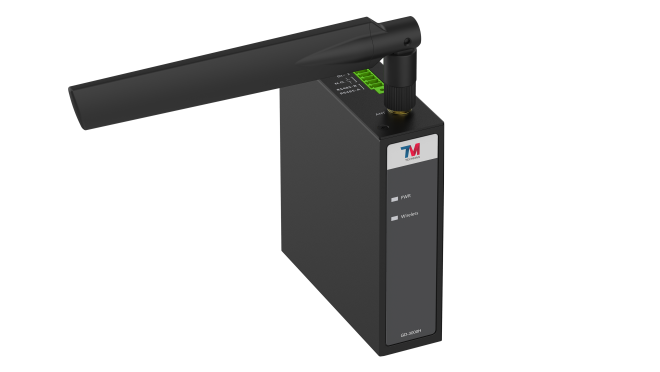

GD-3100H Series
- IEEE 802.11ah-based industrial IoT gateway
- Long-range wireless communication up to 1 km
- PHY data rate up to 32.5 Mbps
- UDP throughput up to 18.6 Mbps
- TCP throughput up to 14.3 Mbps
- Operates in sub-1 GHz license-free band (902–928 MHz)
- Programmable RF settings for global deployment flexibility
- Designed for seamless integration into existing or new infrastructure
- Interfaces & Connectivity
- 1 × Ethernet LAN port
- USB Type-C host interface for external storage
- Dual power input support: terminal block or USB Type-C
- Industrial Design
- Compact gateway form factor for industrial IoT deployment
- Optimized for stable, long-distance wireless connectivity
- IEEE 802.11ah Wi-Fi HaLow standards compliant
- AP/ Client/ Gateway Support
- NMS/ Zero Touch / Node-RED Support
- IEEE 802.11ah Wi-Fi HaLow
- Long range up to 1 kilometer
- RS485/ DI/ Relay x 1
- RJ45 10/ 100M x 1
- Console RJ45 x1
- USB 2.0 Host type-C x 1
- Operating Temperature : -40 ~ 70°C
- 1 x RS232
- 1 x Analog Input (Option by SKU)
